Sunlight coated glass, also known as sunlight control coated glass and heat reflective coated glass, is made by coating one or more layers of metal, metal oxide or non-metal oxide thin film on the surface of high-quality float glass by physical or chemical methods. The coating controls sunlight with a wavelength range of 350-1800nm, and controls the reflection, transmission and absorption of direct sunlight according to the required proportion.
On the basis of having the basic functions of sunlight coated glass, it has extremely low emissivity, can effectively block indoor heat from radiating to the outside in the form of far infrared rays, can reduce indoor heat loss in winter, and has better effect when used with insulating glass, which can greatly improve the thermal insulation performance of the building.
Application :
Building systems/ Automotive systemsOrder(MOQ) :
15 containersCertification :
ISO9001、 ISO14001、ISO45001、ISO50001、AS/NZS2208、AS4666Payment :
T/T. L/CShipping Port :
Fuzhou FujianProduct Origin :
ChinaProduct Advantages
1. Heat insulation and energy saving
It has a high reflectivity for solar radiation, with a reflectivity of 20%-40%, which can effectively block heat from entering the room and reduce air conditioning energy consumption in summer.
2. One-way perspective
It has one-way perspective. When the film layer is on the indoor side, the indoor environment cannot be seen from the outside during the day, protecting the indoor privacy.
3. Rich colors
It can present a variety of colors to meet the different needs of building exterior design and enhance the overall aesthetics of the building.
4. Good chemical stability
It has good acid and alkali resistance, is not easily corroded by the external environment, and can maintain stable performance for a long time.
5. High mechanical strength
The film layer is firm, wear-resistant, not easy to scratch, can be used as a single piece, and can also be made into insulating glass, laminated glass, etc.
Product Parameters
| Conventional size | 2440mm×3660mm |
| Maximum size | 3300mm×18000mm |
| Thickness | Common thicknesses are 5mm, 6mm, 8mm, 10mm, etc. |

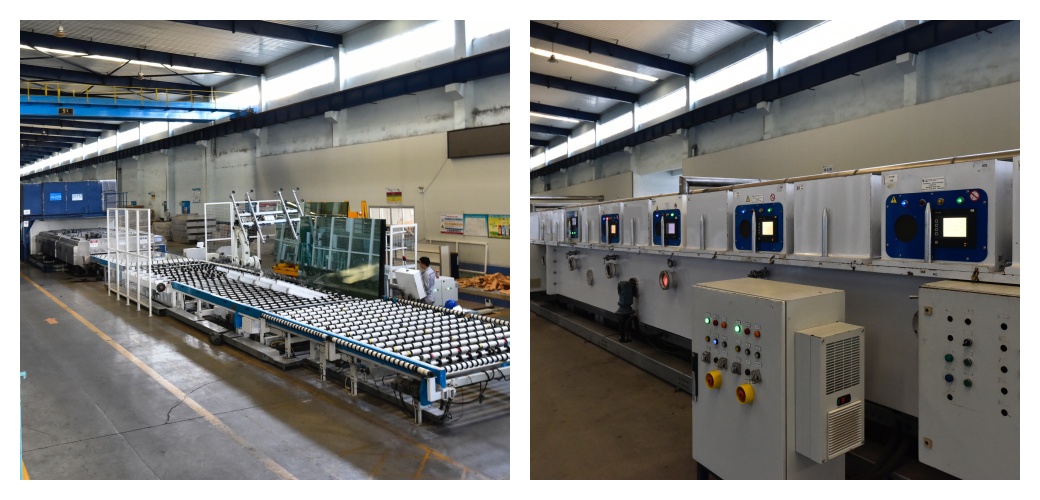

Equipment and Productline
Product Classification
1. According to the coating process
It is divided into online sunlight control coated glass and offline sunlight control coated glass.
2. According to appearance quality
It is divided into superior products and qualified products.
3. According to the heat treatment processing performance
It is divided into non-tempered sunlight control coated glass, tempered sunlight control coated glass and semi-tempered sunlight control coated glass.
Applicable Scenarios
It is widely used in doors, windows, curtain walls, skylights, etc. of various buildings, such as commercial office buildings, hotels, residences, exhibition halls, etc., which can achieve heat insulation, energy saving, and beautiful effects while meeting the lighting needs.
Implementation Standards
Strictly implement relevant national standards such as "Coated Glass Part 1: Sunlight Control Coated Glass" (GB/T18915.1).
FAQ
Q: How can I get a quotation?
A: To provide an accurate quote, please share specific details such as size, thickness, quantity, and any customization requirements.
Q: Do you offer customized production?
A: Yes, our expert technical team specializes in custom manufacturing. We can produce Low Iron Solar Glass tailored to your exact specifications.
Q: How do you package the glass? Is it safe for transportation?
A: We use heavy-duty wooden crates, specially designed for ocean and land transportation. Our skilled loading team, with over four years of experience, ensures proper packing, securing, and container fixation. We will also provide loading pictures for your reference.
Q: Do you provide free samples?
A: Yes, we offer free samples. However, if you need a larger custom sample, freight may apply.
