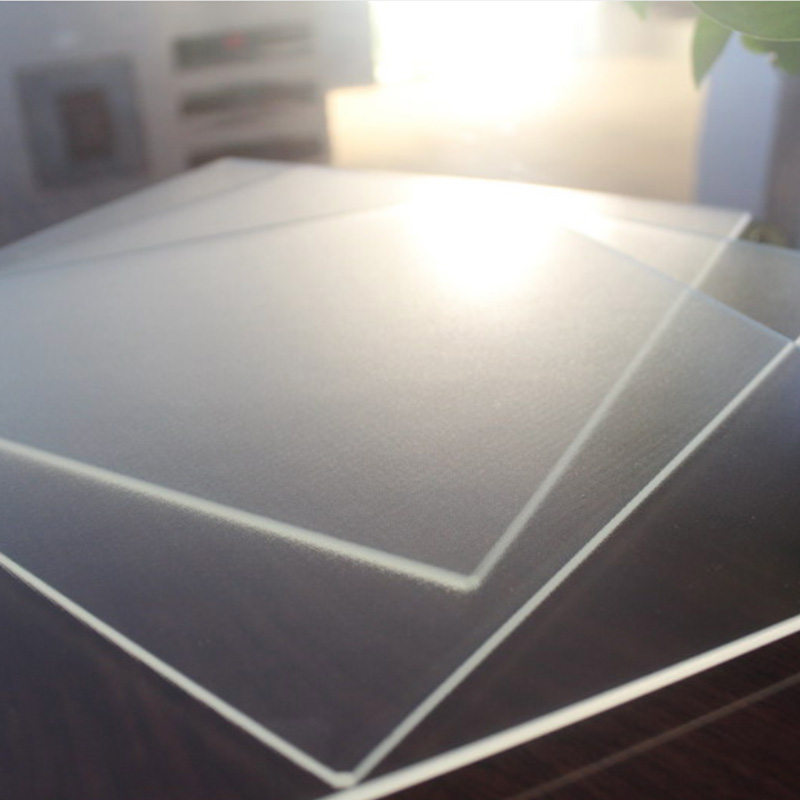

Low lron Tempered Solar Glass for Modules

Product Advantages

1. High light transmittance

Using ultra-white glass original sheet, the iron content is extremely low. Within the wavelength range of the solar cell spectrum response (380-1100nm), the light transmittance can reach more than 91%, which can absorb solar radiation heat to the maximum extent.

2. Low reflectivity

The unique embossing design on the surface makes the light form diffuse reflection on the glass surface, reducing the reflection loss of light and improving the utilization rate of light. It has a higher reflectivity for infrared light greater than 1200nm, which can reduce the heat generated by solar panels during operation.

3. High strength and safety

After high-temperature tempering treatment, the strength of the glass is greatly improved, and the impact resistance is strong. It can effectively resist the damage of natural factors such as hail and sandstorms. At the same time, the tempered glass is in small particles after breaking, which is not easy to cause serious harm to the human body, and improves the safety of use.

4. Good weather resistance

It has the characteristics of corrosion resistance and aging resistance, and can be used stably for a long time in various harsh natural environments to ensure the service life of the solar photovoltaic system.

5. Enhanced bonding performance

The embossed surface can enhance the adhesion with the EVA film, making the bond between the glass and the solar cell module stronger and improving the stability of the entire module.

Product Parameters

Thickness : 4.0mm

Maximum Size : 1000*2000mm

Minimum Size : 300*300mm

Size:

1)side length L≤1000mm allowable deviation +0，-1.5mm;

2)side length L≥1000mm allowable deviation ±1mm；

Solar Transmittance : ≥93.8%

Wavelength Range : 380-1100nm

Diagona : Difference ≤2 mm

Hardness : 3H

Maximum iron content : ≤120ppm

Warpage :

1）Global warpage ≤0.3%；

2）Local warp age≤0.5 mm measured on a distance of 300 mm ；

Corner Cut : Width 1-4mm

Roughness : Smooth side average 0.4~1.2μm.

Advantages :

1.Combined with  nanometer anti-reflective coating technology, glass surface has a dense structure of high -gain film,which increase 2.3%-2.5% of solar transmittance;

2.Good performance on acid and alkali resistance under terrible environments outdoor.

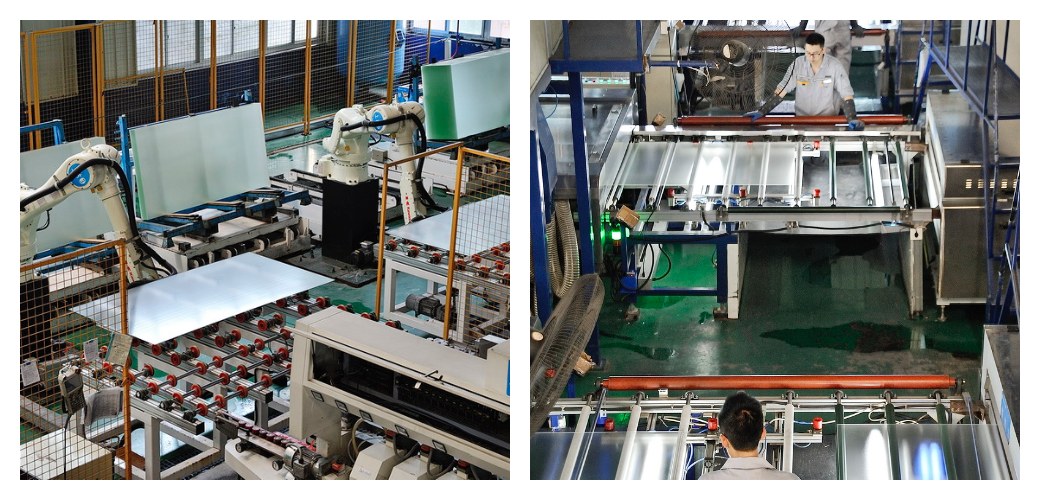

Equipment and Production Line

FAQ

Q: How can I get a quotation?

A: To provide an accurate quote, please share specific details such as size, thickness, quantity, and any customization requirements.

Q: Do you offer customized production?

A: Yes, our expert technical team specializes in custom manufacturing. We can produce Low Iron Solar Glass tailored to your exact specifications.

Q: How do you package the glass? Is it safe for transportation?

A: We use heavy-duty wooden crates, specially designed for ocean and land transportation. Our skilled loading team, with over four years of experience, ensures proper packing, securing, and container fixation. We will also provide loading pictures for your reference.

Q: Do you provide free samples?

A: Yes, we offer free samples. However, if you need a larger custom sample, freight may apply.
