In the process of pursuing building energy saving and comfort, single silver Low-E glass stands out and becomes a high-quality material that balances cost and performance, meeting the needs of various scenarios with its excellent characteristics.
Compared with double silver and triple silver Low-E glass, single silver Low-E glass is more affordable while ensuring excellent performance. It provides a feasible energy-saving upgrade solution for a large number of projects at a relatively low price, especially for construction projects with limited budgets but certain requirements for energy saving, helping customers to reduce building energy consumption and improve living experience under the premise of controlling costs.
Single silver Low-E glass builds an efficient heat reflection barrier by coating a layer of silver film on the glass surface. It can effectively reflect infrared rays in solar radiation, with a blocking rate of about 80%, greatly reducing the indoor temperature rise caused by solar radiation and reducing the air conditioning refrigeration load. In winter, it can prevent indoor heat from dissipating outward, play a good insulation role, reduce heating energy consumption, achieve energy-saving goals throughout the year, and reduce energy costs.
Application :
Building systems/ Automotive systemsOrder(MOQ) :
15 containersCertification :
ISO9001、 ISO14001、ISO45001、ISO50001、AS/NZS2208、AS4666Payment :
T/T. L/CShipping Port :
Fuzhou FujianProduct Origin :
ChinaProduct Advantages
1. High-efficiency thermal insulation
It can effectively reflect infrared rays in solar radiation, with a blocking rate of about 80%, significantly reducing indoor and outdoor heat transfer. In summer, it blocks the influx of outdoor heat and reduces the air conditioning and cooling load; in winter, it retains indoor heating and reduces heating energy consumption, achieving a perfect balance between energy saving and comfort.
2. High visible light transmittance
The visible light transmittance can reach 60%-70%, and the indoor natural lighting is sufficient, bright and transparent. While enjoying the sunshine, it effectively filters glare, creates a comfortable visual environment, and can also reduce the use of artificial lighting, further reducing energy consumption.
3. Good UV blocking
It can block some ultraviolet rays. Although it cannot completely prevent the fading of indoor items, it can effectively slow down the fading speed and protect furniture, curtains and other soft furnishings.
Compared with other Low-E glass
Compared with double silver and triple silver Low-E glass, single silver Low-E glass is more affordable and has obvious cost advantages. It is suitable for projects with limited budgets but pursuing energy saving. In terms of performance, although it is slightly inferior to double silver and triple silver products in terms of shading coefficient and heat transfer coefficient, it can meet the needs of most scenarios in terms of basic performance such as heat insulation and light transmission, and has a very high cost performance.
Specifications
1. Size
The maximum size can reach 2440mm×4200mm, and the minimum size is 250mm×500mm. Different specifications can be customized according to project requirements.
2. Thickness
The glass thickness ranges from 3mm to 19mm, and can be flexibly combined into structures such as insulating glass of different thicknesses.
3. Color
Common colors include silver gray, light gray, light blue and colorless transparent, etc., to meet the needs of different architectural exterior designs.

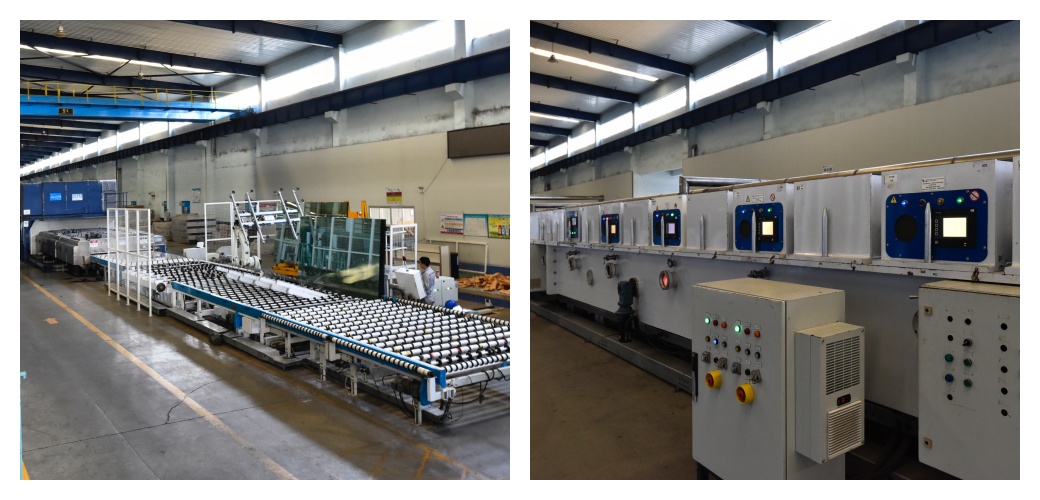

Equipment and Productline
Production Process
Adopt internationally advanced vacuum magnetron sputtering coating technology. In a vacuum environment, solid target materials (such as silver, titanium, nickel-chromium alloy, etc.) are transferred to the glass surface to deposit into a thin film through the plasma formed by negative high voltage and working gas. The thickness and composition of each layer of film are accurately controlled to ensure stable product performance and excellent quality.
Application Scenarios
1. Residential buildings
Whether it is the doors and windows of ordinary houses or the sunrooms of villas, single silver Low-E glass can improve living comfort and reduce energy costs, making it an ideal choice for home decoration. For example, it can be used for large south-facing windows to effectively insulate in summer and keep warm in winter.
2. Commercial buildings
Small shopping malls, shops, etc., while controlling costs, can achieve energy saving and good lighting through single silver Low-E glass, improve space comfort, and attract customers.
3. Industrial buildings
Industrial places such as factories and warehouses that have certain requirements for insulation and lighting, use single silver Low-E glass to improve the working environment, reduce energy consumption, and improve production efficiency.
FAQ
Q: How can I get a quotation?
A: To provide an accurate quote, please share specific details such as size, thickness, quantity, and any customization requirements.
Q: Do you offer customized production?
A: Yes, our expert technical team specializes in custom manufacturing. We can produce Low Iron Solar Glass tailored to your exact specifications.
Q: How do you package the glass? Is it safe for transportation?
A: We use heavy-duty wooden crates, specially designed for ocean and land transportation. Our skilled loading team, with over four years of experience, ensures proper packing, securing, and container fixation. We will also provide loading pictures for your reference.
Q: Do you provide free samples?
A: Yes, we offer free samples. However, if you need a larger custom sample, freight may apply.
